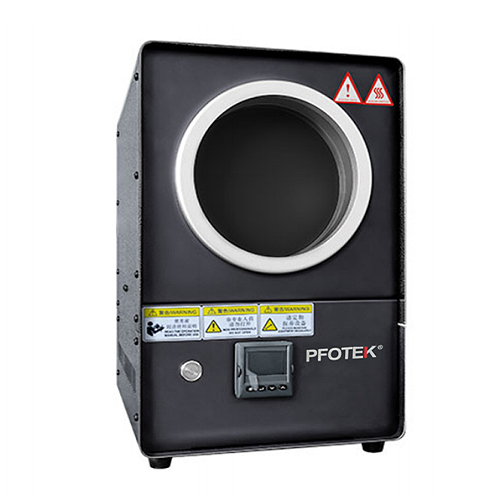

This product is a portable planar radiation source, the radiation area is Φ150mm, and the uniformity is good; Independent development of high temperature coating, high emissivity, coating after high temperature work Keep the emissivity stable, reuse data is good, widely used to calibrate radiation thermometers and thermal imaging cameras. This equipment can be customized according to customer needs at different temperatures Degree segment.
Model: TEK-0-500
Temperature range: (ring temperature +5-500) °C
Radiant surface diameter: Φ150mm
Emissivity: Adjustable emissivity (0.95-0.97)
Ambient humidity: <85%
Stability: ≤ (0.15°C and 0.15%t)
Uniformity: ≤ (greater than 0.2°C or 0.2%t)
Power supply: 220VAC, 5A, 50/60Hz
Power: 1.1KW
Ambient temperature: (5-40) °C
Volume: 290*420*250mm
Weight: Approx. 5KG
The products can be calibrated by the China Academy of Metrology (NIM), which is the highest national metrology scientific research center and a national legal measurement technology institution Code and name of the technical document on which the calibration is based/referenced)
According to NIM-ZY-RG-FS-081 (-50~1000)C Variable Temperature Blackbody Radiation Source Calibration Implementation Rules.
Refer to JJF 1552-2015 Calibration specification for -10°C and 200°C blackbody radiation sources for radiation temperature measurement.
Metrology base (standard) device "containing reference materials)/main instrument used for calibration
Name: Blackbody radiation source calibration device
Measuring range: (-50-1000)°C
Uncertainty/accuracy level: U =(0.04~0.65)°C(k=2)
Certificate number: [2022] National Quantity Calibration Certificate No. 430 The certificate is valid until (YYYYMM-DD): 2027-08-15
